Split/Splitless Inlet Supplies
Split/splitless inlet supplies are GC inlet supplies and accessories designed especially for the Agilent split/splitless inlet, such as the shell weldment and septum nut. Routine maintenance of the split/splitless inlet body, turn-top assembly, and split-vent line hardware is essential to whole-system performance and overall uptime.
Agilent’s deactivated capillary weldment and septum injector nut are available for 7800 and 8800 series GCs. The capillary shell weldment is the interface between the injector’s heating block and the sample flow-path. The shell weldment is engineered with precision and coated with Agilent’s proprietary UltiMetal deactivation , providing a highly inert flow path that minimizes sample adsorption and prevents unwanted chemical interactions. The septum nut is a critical component of GC injector hardware that provides an airtight seal at the head of the inlet by securing the pierceable septum material, preventing leaks and minimizing contamination.
Use Agilent SSL inlet supplies in combination with Agilent’s inert flow-path consumables , including bleed temperature optimized or Advanced Green inlet septa, ultra inert inlet liners, deactivated inlet seals, and self-tightening collared nuts for optimal results.

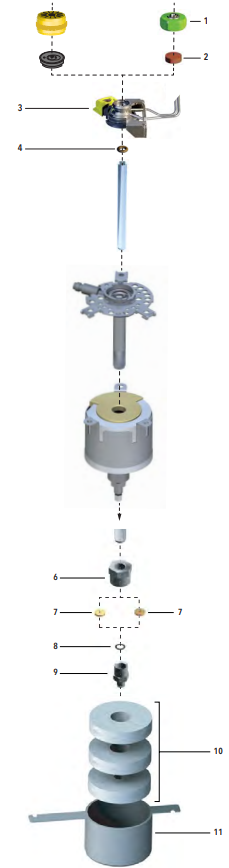

Parts blowout diagram for Agilent 7890/6890/6850 Split/Splitless Inlet — item numbers correspond to the table.
| Item | Description & Qty | Part No. |
|---|---|---|
| 1 | Headspace septum retainer nut (ea) | 18740-60830 |
| Septum retainer nut (ea) | 18740-60835 | |
| Strain relief septum nut (ea) | 301-205-HSP | |
| 2 | 11 mm Certified BTO septa (50/pk) | 5183-4757 |
| 3 | 7890 Insert Weldment | |
| Top insert weldment assembly, standard (ea) | G3452-60730 | |
| Top insert assembly, valve (ea) | G3480-67585 | |
| 6890 Insert Weldment | ||
| S/SL insert weldment; used with large charcoal canister type filter for 6890/6850 (ea) | G1544-60585 | |
| S/SL insert assembly for G1540A with valved system option (ea) | G1580-60585 | |
| Original standard EPC using 1/4” split vent filter (ea) | G1544-60575 | |
| Allows insertion of 1/4” chemical filters for ECD operation (ea) | G1544-80580 | |
| 4 | Certified non-stick fluorocarbon O-ring (10/pk) | 5188-5365 |
| Graphite O-ring for split liner (10/pk) | 5180-4168 | |
| Graphite O-ring for splitless liner (10/pk) | 5180-4173 | |
| Non-stick fluorocarbon liner O-ring for Flip Top (10/pk) | 5188-5366 | |
| 5 | Split vent trap kit (ea) | G1544-60610 |
| Repl cartridge (2 cartridges & 4 O-rings) (ea) | G1544-80530 | |
| Split vent trap PM kit (1 cartridge & 2 O-rings) (ea) | 5188-6495 | |
| 6 | Retaining nut (ea) | G1544-20590 |
| 7 | Stainless steel seal (ea) | 18740-20880 |
| Certified gold plated seal kit, includes washer (ea) | 5188-5367 | |
| Gold plated seal with cross (ea) | 5182-9652 | |
| 8 | Washers, 0.375 OD (12/pk) | 5061-5869 |
| 9 | Reducing nut (ea) | 18740-20800 |
| 10 | Insulation kit, 3 pieces (ea) | 5188-5241 |
| Lower insulation cover (ea) | 19243-00070 | |
| 12 | Ferrules (Shop Here) | — |
| 13 | Universal column nut (2/pk) | 5181-8830 |
| 6850 column nut (2/pk) | 5183-4732 | |
| Split/splitless septum nut angled wrench (ea) | 19251-00100 | |
