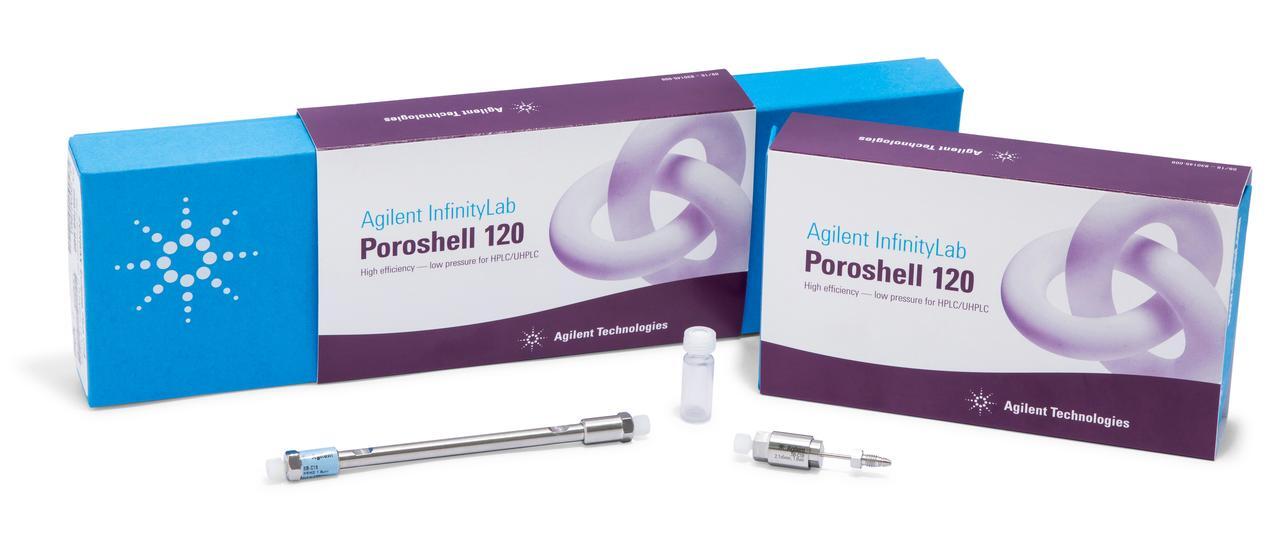

InfinityLab Poroshell 120
Agilent Poroshell 120 Reversed Phase HPLC Columns
Agilent InfinityLab Poroshell 120 columns deliver high efficiency, fast separations, and reduced backpressure—making them the trusted choice for both conventional LC and UHPLC systems. Their unique solid-core design and 2 µm frit construction allow reliable performance even with challenging or dirty samples.
- Up to 50% lower backpressure than sub-2 µm particles—ideal for 400/600 bar LC and UHPLC systems.
- High-speed performance from a solid core with a porous outer layer that enhances mass transfer and resolution.
- Tight particle size distribution for excellent precision, reproducibility, and peak shape.
Multiple Particle Sizes for Any Method
The Poroshell 120 family is available in 1.9 µm, 2.7 µm, and 4 µm formats—supporting everything from high-speed UHPLC analysis to robust routine HPLC workflows. Whether separating small polar analytes or complex mixtures, Poroshell chemistries provide the selectivity and speed required for modern labs.
Convenient Kits for Method Validation
For quality-control workflows, Agilent offers method validation kits containing columns from three different manufacturing lots. Add a “K” to any Poroshell part number to streamline lot-to-lot reproducibility testing.
Poroshell 120 HILIC Options for Polar Compounds
The newest Poroshell 120 HILIC phases are engineered for fast, high-efficiency separation of polar and highly charged compounds using standard LC systems.
- HILIC-Z — Zwitterionic phase offering excellent peak shape for highly charged compounds under high-pH or elevated-temperature conditions.
- HILIC-OH5 — Poly-hydroxy fructan phase providing orthogonal selectivity for difficult polar analytes.
Why Choose Agilent Poroshell 120?
- High efficiency and resolution across all LC platforms.
- Rugged performance with dirty or complex samples.
- Long column lifetime and consistent batch-to-batch reproducibility.
- Versatile chemistries supporting reversed-phase, HILIC, and polar workflows.
For help selecting the right Poroshell 120 column, contact our technical support team .
Superficially Porous Particles (SPP)
Engineered with a solid core and a porous outer layer, SPP particles reduce diffusion distance, improving efficiency and resolution while lowering backpressure—core to Poroshell 120 performance.
2 µm Frit Technology
A specialized frit that resists clogging from dirty samples, improving uptime and extending column lifetime compared to traditional sub-2 µm UHPLC columns.
Hydrophilic Interaction Chromatography (HILIC)
A separation mode optimized for polar analytes, using high organic mobile phases. Poroshell 120 HILIC-Z and HILIC-OH5 provide selectivity for charged and highly polar compounds.
Method Validation Kit
An Agilent kit providing three column lots of the same phase to verify robustness, consistency, and batch-to-batch reproducibility during regulated method validation.
Narrow Particle Size Distribution
Highly uniform particle sizing improves efficiency, resolution, and reproducibility—critical for consistent Poroshell 120 chromatographic performance.
What makes Poroshell 120 columns different from traditional sub-2 µm columns?
Poroshell 120 columns use solid-core particle technology, delivering UHPLC-level efficiency with up to 50% lower backpressure—making them ideal for both UHPLC and conventional 400/600 bar LC systems.
Can Poroshell 120 columns handle dirty or complex samples?
Yes. Their 2 µm frits and core–shell design better tolerate particulates and sample matrices, helping reduce fouling while maintaining high efficiency and superior peak shape.
What are Poroshell 120 HILIC columns used for?
Poroshell 120 HILIC-Z and HILIC-OH5 phases are designed for high-efficiency separation of small polar analytes, offering strong retention, excellent peak shape, and alternate selectivity on standard LC systems.
What are method validation kits, and when should I use them?
Agilent’s three-lot validation kits ensure reproducibility and regulatory confidence by including columns from different manufacturing lots—ideal for QC labs performing method transfer or validation.
Product List
| SKU | Name | LC Column Phase | Particle Size | Inner Diameter (ID) | Length |
|---|---|---|---|---|---|
SKU
699775-902
|
Name
699775-902 - Poroshell 120 EC-C18, 2.1 x 50 mm, 2.7 um
|
LC Column Phase
EC-C18
|
Particle Size
2.7 um
|
Inner Diameter (ID)
2.1 mm
|
Length
50 mm
|
SKU
699775-408
|
Name
699775-408 - Poroshell 120 PFP,2.1x50mm, 2.7um
|
LC Column Phase
PFP
|
Particle Size
2.7 um
|
Inner Diameter (ID)
2.1 mm
|
Length
50 mm
|
SKU
699975-502
|
Name
699975-502 - Poroshell HPH-C18,3x50mm, 2.7um
|
LC Column Phase
HPH-C18
|
Particle Size
2.7 um
|
Inner Diameter (ID)
3 mm
|
Length
50 mm
|
SKU
699975-302
|
Name
699975-302 - Poroshell 120 EC-C18 3x50mm 2.7um 600 bar
|
LC Column Phase
EC-C18
|
Particle Size
2.7 um
|
Inner Diameter (ID)
3 mm
|
Length
50 mm
|
SKU
689975-302
|
Name
689975-302 - Poroshell 120 SB-C18 3x50mm 2.7um 600 bar
|
LC Column Phase
SB-C18
|
Particle Size
2.7 um
|
Inner Diameter (ID)
3 mm
|
Length
50 mm
|
SKU
823750-922
|
Name
823750-922 - InfinityLab Poroshell HPH-C8, 3.0 mm, 2.7 um, UHPLC guard, 3/pk
|
LC Column Phase
HPH-C8
|
Particle Size
2.7 um
|
Inner Diameter (ID)
3 mm
|
Length
5 mm
|
SKU
820750-920
|
Name
820750-920 - InfinityLab Poroshell 120 HILIC, 4.6 mm, 4 um, UHPLC guard, 3/pk
|
LC Column Phase
HILIC
|
Particle Size
4 um
|
Inner Diameter (ID)
4.6 mm
|
Length
5 mm
|
SKU
820750-919
|
Name
820750-919 - InfinityLab Poroshell 120 Phenyl-Hexyl, 4.6 mm, 4 um, UHPLC guard, 3/pk
|
LC Column Phase
Phenyl-Hexyl
|
Particle Size
4 um
|
Inner Diameter (ID)
4.6 mm
|
Length
5 mm
|
SKU
820750-917
|
Name
820750-917 - InfinityLab Poroshell 120 EC-C8, 4.6 mm, 4 um, UHPLC guard, 3/pk
|
LC Column Phase
EC-C8
|
Particle Size
4 um
|
Inner Diameter (ID)
4.6 mm
|
Length
5 mm
|
SKU
699970-912K
|
Name
699970-912K - Agilent InfinityLab Poroshell 120 Phenyl-Hexyl, 4.6 x 50 mm, 4 um, MVK 3/pk
|
LC Column Phase
Phenyl-Hexyl
|
Particle Size
4 um
|
Inner Diameter (ID)
4.6 mm
|
Length
50 mm
|
SKU
699970-906K
|
Name
699970-906K - Agilent InfinityLab Poroshell 120 EC-C8, 4.6 x 50 mm, 4 um, MVK 3/pk
|
LC Column Phase
EC-C8
|
Particle Size
4 um
|
Inner Diameter (ID)
4.6 mm
|
Length
50 mm
|
SKU
699970-902K
|
Name
699970-902K - Agilent InfinityLab Poroshell 120 EC-C18, 4.6 x 50 mm, 4 um, MVK 3/pk
|
LC Column Phase
EC-C18
|
Particle Size
4 um
|
Inner Diameter (ID)
4.6 mm
|
Length
50 mm
|
