Zero Air Generator

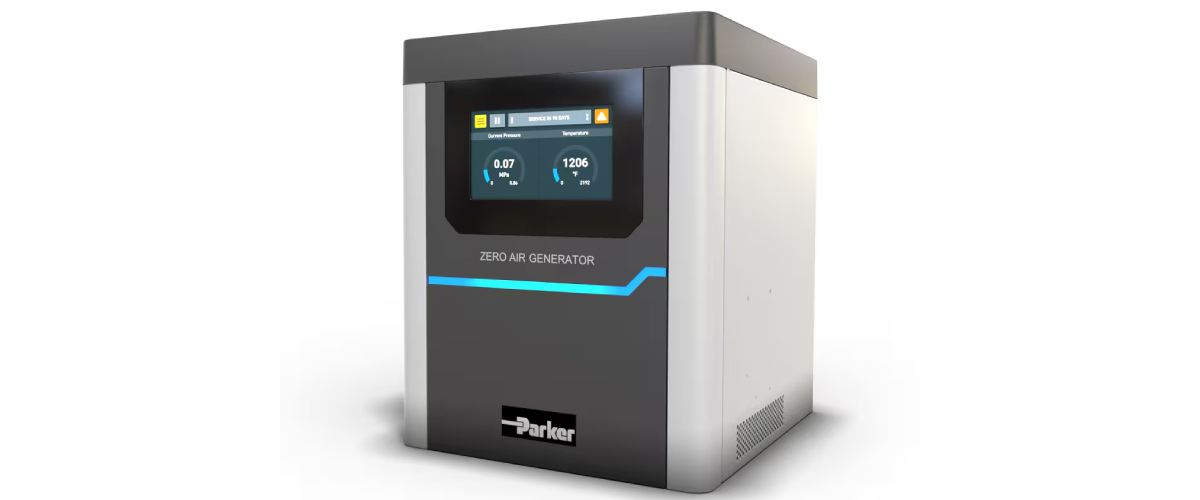

Parker Zero Air Generator

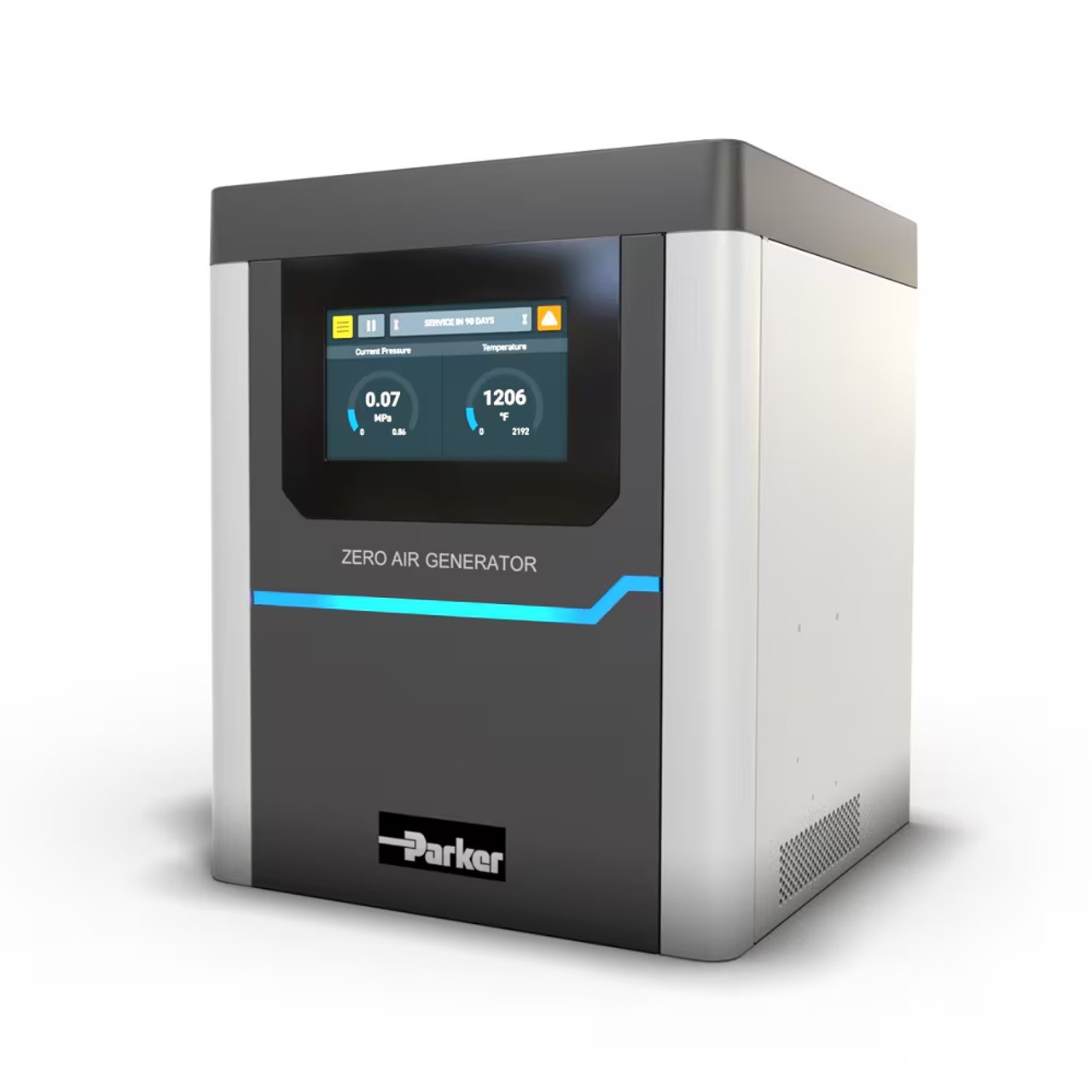

ChromGas ZAG Series
Parker’s ChromGas ZAG generators provide a continuous stream of hydrocarbon free air from an external dry compressed air source, off ering superior limits of detection over and above other modes of supply. Flow rates range from 3.5 L/min to 30 L/min and can support up to 75 fl ame detectors.
When combined with ChromGas H2F, the system forms a modular FID gas station suitable for all known GC combustion detectors such as FID, FPD, and NPD. Its state-of-the-art control system, elevates both user-friendliness and performance monitoring.
- UHP organic free air for GC
- Increase resolution and detection limits of analysis
- Compact design
- Minimal operator attention required
- Typical payback of 2 years
- Stackable with other ChromGas products
- Meets CSA, UL, CE and UKCA
| Model | 75‑83NA | ZAG‑3.5LNA | ZAG‑7LNA | ZAG‑18LNA | ZAG‑30LNA |
|---|---|---|---|---|---|
| Max. Zero Air Flow Rate | 1 L/min | 3.5 L/min | 7 L/min | 18 L/min | 30 L/min |
| Outlet Hydrocarbon Concentration (as methane) |
< 0.1 ppm | < 0.05 ppm | < 0.05 ppm | < 0.1 ppm | < 0.1 ppm |
| Min./Max. Inlet Air Pressure | 40–125 psig (2.8–8.6 bar g) | ||||
| Max. Inlet Hydrocarbon Concentration (as methane) |
100 ppm | ||||
| Pressure Drop at Maximum Flow Rate | 4 psig (0.3 barg) | ||||
| Max. Inlet Air Temperature | 78°F (25°C) | ||||
| Inlet/Outlet Ports | 1/4″ NPT (female) | ||||
| Electrical Requirements | NA Models: 120V 60Hz, WD Models: 220V 50Hz | ||||
| Dimensions | 12″ h × 10″ w × 3″ d (30 cm × 25 cm × 8 cm) |
17.2″ h × 13.5″ w × 16″ d (437 mm × 343 mm × 407 mm) |
|||
| Shipping Weight | 7 lbs. (3 kg) | 41 lbs. (19 kg) | |||
| Number of FIDs | Model Number |
|---|---|
| Up to 2 | 75‑83NA |
| Up to 8 | ZAG‑3.5LNA |
| Up to 16 | ZAG‑7LNA |
| Up to 40 | ZAG‑18LNA |
| Up to 66 | ZAG‑30LNA |
| Description | Part Number |
|---|---|
| Maintenance Kit for Model 75-83NA | MK7583 |
| 12 Month Maintenance Kit for ChromGas Models | MKZAG-12M |
| 36 Month Maintenance Kit for ChromGas Models | MKZAG-3.5LNA-36M, MKZAG-7LNA-36M, MKZAG-18LNA-36M, MKZAG-30LNA-36M |
| Installation Kit (for All Models) | IK76803 |
